How to configure the Ubuntu DHCP client

Dynamic Host Configuration Protocol, abbreviated as DHCP, is a client-server protocol that enables a DHCP server to assign an IP address and other related configuration parameters such as default gateway and subnet mask to a DHCP client on a network.The DHCP protocol is necessary because it prevents network or system administrators from manually configuring IP addresses for new machines added to the network or computer system that are moved from one subnet to another.

Through the ’lease’, the DHCP server allocates the IP addresses to the DHCP clients. The lease time depends on how long the client system requires the connection or DHCP configuration.

We will talk about the configuration of a DHCP client on Ubuntu Linux distribution in this article. We have assumed in this article that the DHCP server is already set up on your other machine, or you can also install it from this URL.

DHCP client configuration on Ubuntu

To set up the DHCP client on your Ubuntu system, first, check the network interface name by running the following command:

$ ifconfig

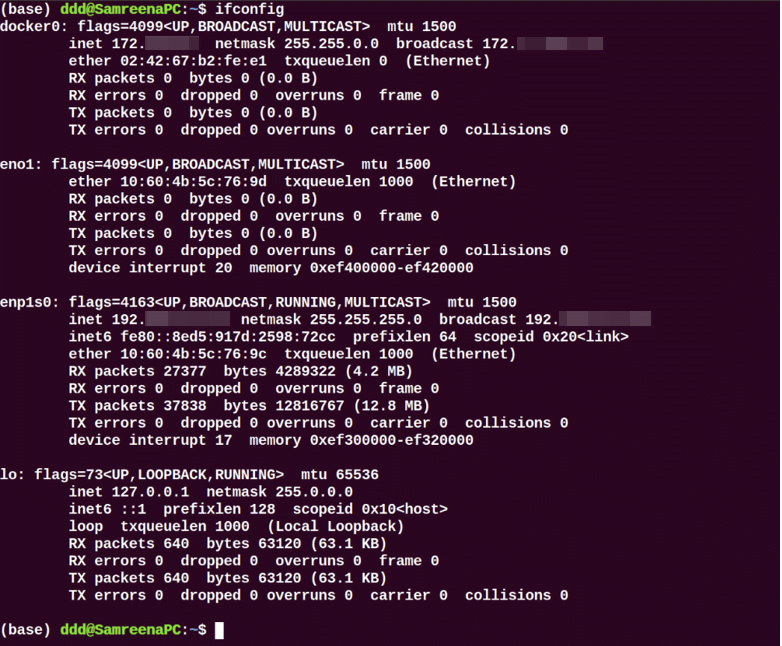

How to configure the Ubuntu DHCP client 1

Once the network interface name is identified, you need to make some changes to the network interfaces file for DHCP client configuration. So, open the ‘/etc/network/interfaces’ file in your favorite text editor by using the following command:

$ sudo nano /etc/network/interfaces

Now, use the following syntax to configure the dhcp client:

auto <interface-name>

iface <interface-name>inet dhcp

Here, the network interface name is ‘enp1s0’; we have changed the above lines into the following format:

auto enp1s0

iface enp1s0 inet dhcp

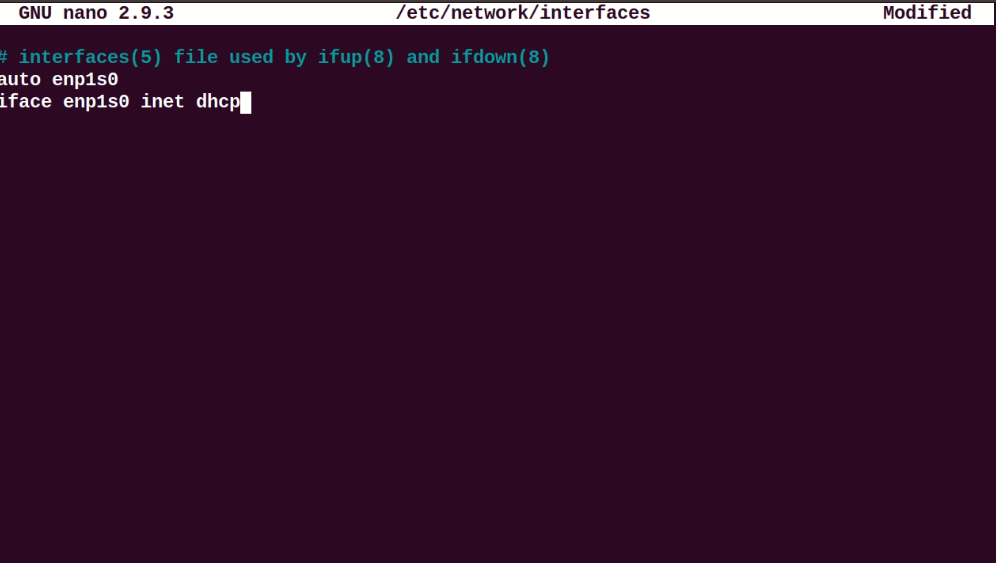

How to configure the Ubuntu DHCP client 2

Save and close the above configuration file. Now, restart the network manager services by running the following command:

$ sudo systemctl restart NetworkManager.service

Or

$ sudo systemctl restart networking

How to configure the Ubuntu DHCP client 3

Verify the NetworkManager service running status by executing the following command:

$ sudo systemctl status NetworkManager.service

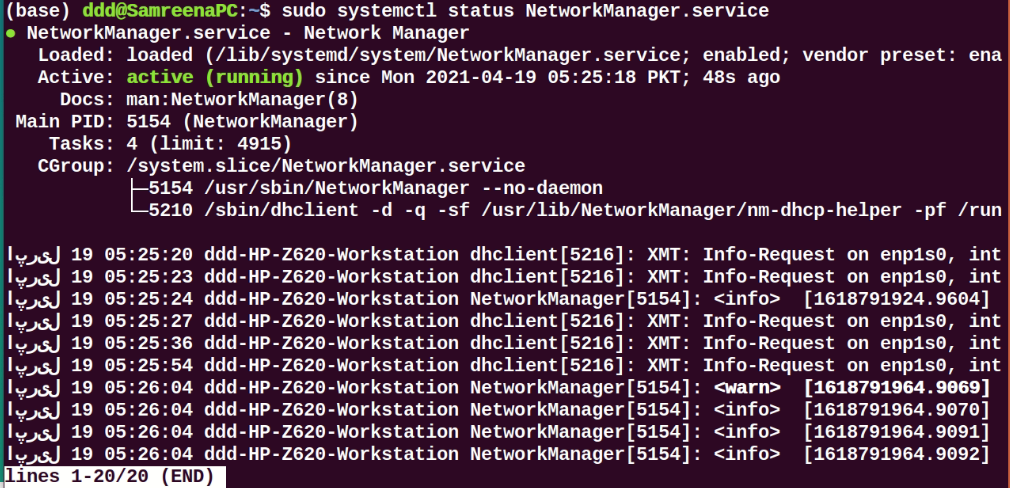

How to configure the Ubuntu DHCP client 4

When during the booting process, this system should request network parameters from the DHCP server.

To manually execute the DHCP process, the dhclient command can be used. If the DHCP server assigns no IP to the DHCP client, then use the following command renew or release the IP address. Wait for a while; the DHCP server will automatically assign IP addresses to the client machine.

$ sudo dhclient -r <interface-name>

Using the ‘ifconfig’ command can view the interface name.

Configure DHCP through netplan

In most Ubuntu distribution, networking is controlled or managed through the netplan program. Therefore, in this situation, you need to edit the netplan configuration files. To edit the appropriate file configuration, navigate into the ‘/etc/netplan’ directory and open that file.

$ sudo nano /etc/netplan/01-netcfg.yaml

How to configure the Ubuntu DHCP client 5

Add the following lines in this file:

network:

version: 2

renderer: networkd

ethernets:

enp1s0:

dhcp4: yes

Save the above configuration by using ‘Ctrl+O’ in this file and exit from this window by pressing ‘Ctrl+x’.

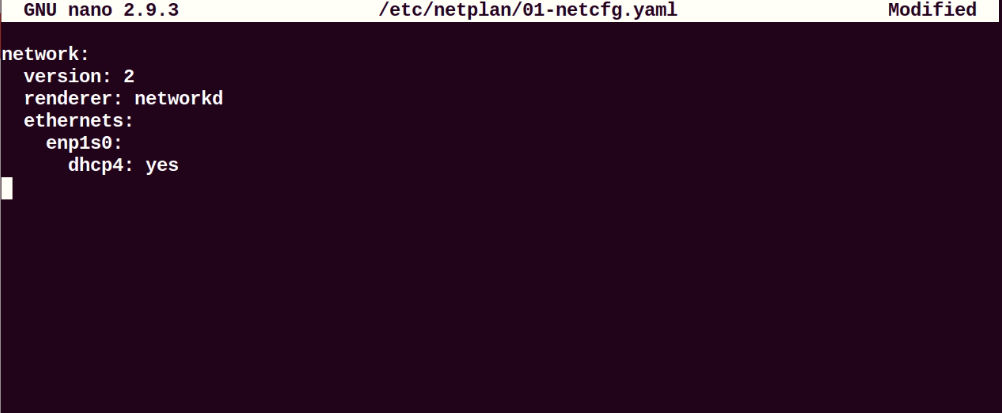

How to configure the Ubuntu DHCP client 6

Now, run the below-mentioned command to apply changes:

$ sudo netplan apply

Configure DHCP client through Ubuntu desktop environment

You can also use another virtual machine with Ubuntu 20.04 Desktop as a DHCP client. In Ubuntu, the default configuration method is set as DHCP. If it does not take an IP director from the DHCP server, change the IPV4 setting of your network. Click go into the ‘Setting’ and move into the network wired or wireless settings. The following window should display on your system:

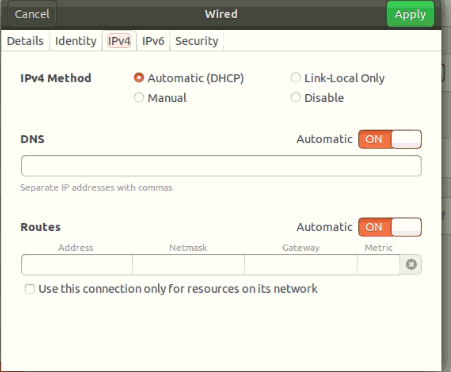

How to configure the Ubuntu DHCP client 7

Set your entire IPV4 configuration similar to the above-displayed screenshot.

Now, show the network details by clicking on the ‘Detail’ tab as follows:

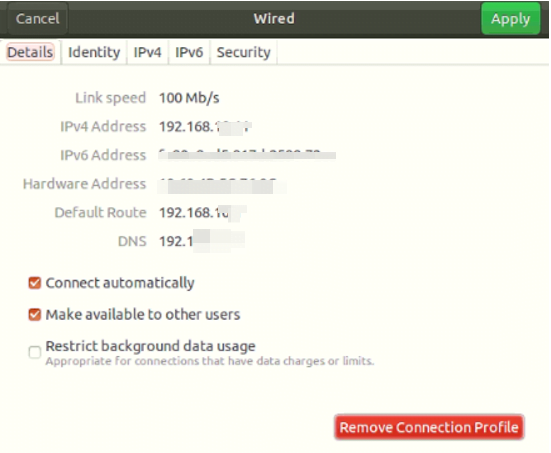

How to configure the Ubuntu DHCP client 8

Verify the configuration by running the following command:

$ ifconfig

You will see that the IP is allocated to the network interface.

You can also use the host machine on your system as a DHCP client. However, to get IP, do not reboot your host machine because, in this case, Virtualbox will be powered down, so there is no DHCP running on the system.

It is important to note that if you are using mobile devices or host machines as a DHCP client, most of the chances are that they have already been connected to this network. However, they will request the same IP to the DHCP server that was allocated before. However, if the IP does not fall in your defined range then, a request will be sent to the router.

Conclusion

We have seen in this article how to configure a DHCP client using different ways on Ubuntu distribution. All commands we have implemented on the Ubuntu 20.04 environment. DHCP client configuration is very simple. So that, in just a few minutes, you can easily set up a DHCP client on your system using the above-mentioned steps.
