ipcalc – Calculate IP Subnet Address in Linux 2

ipcalc – Calculate IP Subnet Address in Linux

In advance or modern networking, you must have knowledge or deal with subnetting. Few of the system administrators or related people can do binary math in their head to calculate the exact subnet mask but some of them need help which is fulfilled by the ipcalc tool in Linux.

In Linux, ipcalc has more abilities in the networking field. Firstly, it collects the data such as IP address and netmask then comes up with the resulting broadcast, network, Cisco wildcard mask, and host range. Also, you can create the subnets and supernets by providing the second netmask. It can be used as the teaching tool by presenting the subnetting results in an easy to understand binary values.

Ipcalc features

  • Multiple types of bitmaps as output.
  • Address information is retrieved from interfaces.
  • Show hostnames directed as per DNS resolutions.
  • Output is presented as compressed and standard wise.
  • Input address is also presented as compressed and standard wise.
  • Output formats as multiple addresses and netmask.
  • User defined number of extra networks as Output.
  • Output of standard IPV6 network.

How to install ipcalc in Linux

Here, we are going to install ipcalc on Ubuntu 21.04. First open the terminal then run the following command to install the ipcalc tool.

$ sudo apt install ipcalc -y

ipcalc – Calculate IP Subnet Address in Linux 3

How to use ipcalc in Linux

Now, you can run ipcalc command with your ip address to see all information about the network addresses.

$ ipcalc 192.168.1.67

Output:

ipcalc – Calculate IP Subnet Address in Linux 4

How to calculate the subnet

To calculate the subnet for 192.168.1.0/24, you can run the following command:

$ ipcalc 192.168.1.0/24

Output:

ipcalc – Calculate IP Subnet Address in Linux 5

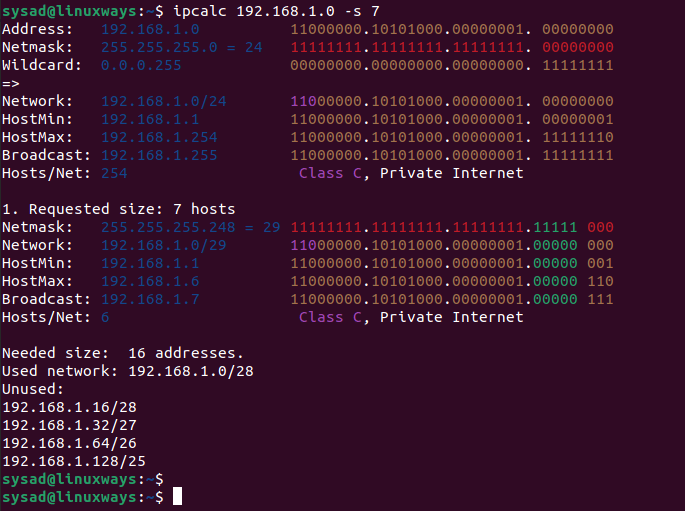

How to calculate a single subnet with 7 hosts

To calculate a single subnet, you can run the following command:

$ ipcalc 192.168.1.0 -s 7

Output:

ipcalc – Calculate IP Subnet Address in Linux 6

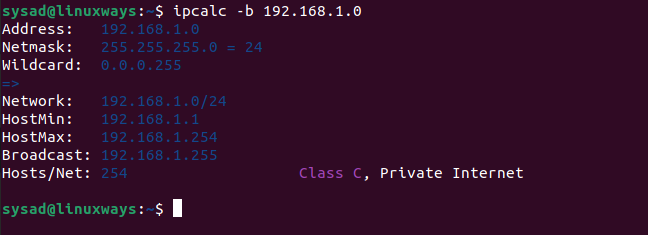

How to suppress the binary output

To suppress the binary output, you can run the following command by using -b option as shown below:

$ ipcalc -b 192.168.1.0

Output:

ipcalc – Calculate IP Subnet Address in Linux 7

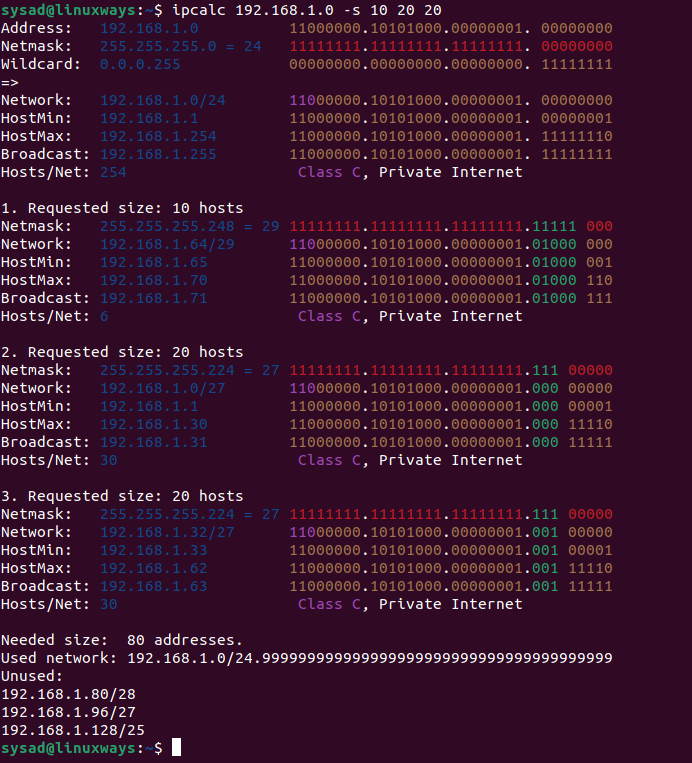

How to calculate a multiple subnets with single command

If you want to split 192.168.1.0 into three subnets and total hosts are 50. You have to specify the number of hosts and network mast in each segment.

$ ipcalc 192.168.1.0 -s 10 20 20

Output:

ipcalc – Calculate IP Subnet Address in Linux 8

To get more details on ipcalc, you can just run the following command:

$ ipcalc --help

Or,

$ man ipcalc

Conclusion

In this article, you learned about the ipcalc tool and the steps to use it with certain examples. It is an important tool for network related tasks. Thank you!

Karim Buzdar

Karim Buzdar holds a degree in telecommunication engineering and holds several sysadmin certifications including CCNA RS, SCP, and ACE. As an IT engineer and technical author, he writes for various websites.
